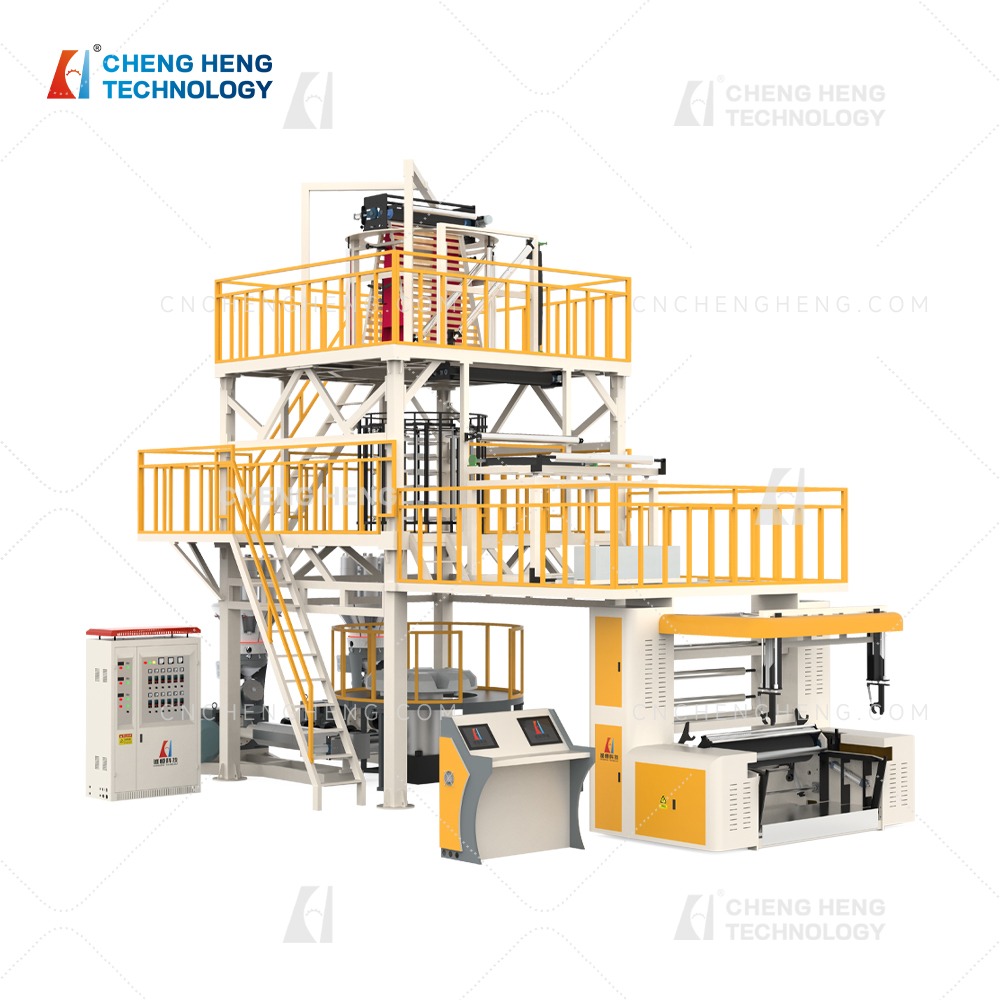

H-ABA Automatic vertical rotary film blowing machine

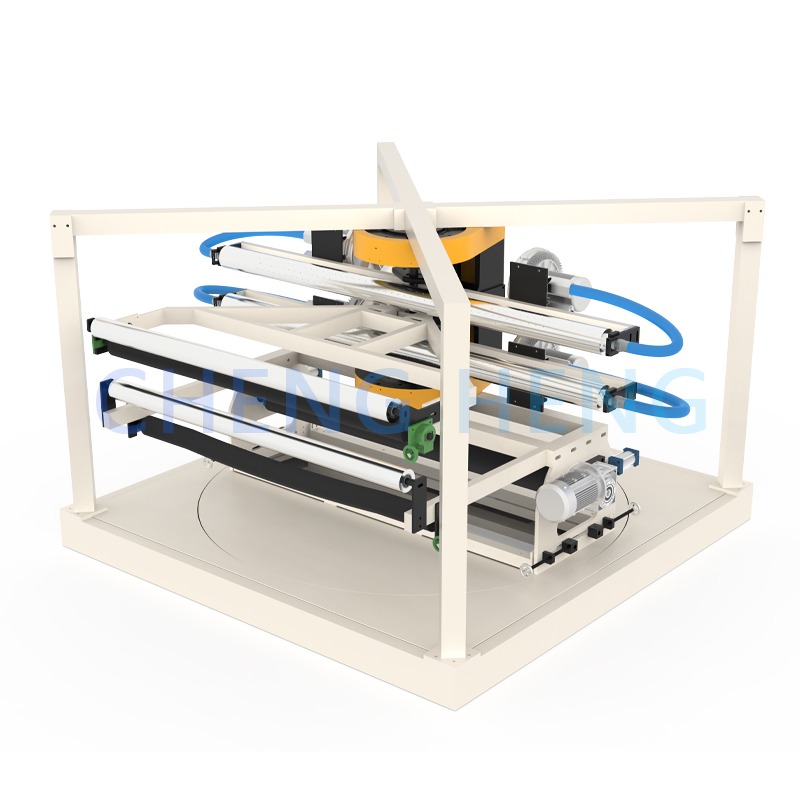

The ABA vertical traction rotary blown film machine mainly suitable to produce not more than 1000mm width film, and it is equipped with the vertical traction rotary device that make the film thickness more even.

Information Download
Inquire Now
Product Presentation
Description

ABA vertical traction rotary film blowing machine is an exceptional product that offers advanced technology and superior functionality. This machine is designed to deliver high-quality and high-performance film, which makes it an ideal choice for the packaging industry.The machine's ability to control various parameters such as thickness, width, and length is crucial to its success and is a major advantage for its users.In conclusion, the ABA vertical traction rotary blown film production line is an excellent choice for anyone in the packaging industry. Its advanced technology, high-speed operation and exceptional performance make it a valuable addition to any packaging company.


Specification

Model 45/50/45-1200
Width of the film 500-1000mm
Thickness of the film 0.02-0.2mm
Output 40-200kg/h
Output According to different width, thickness of film,die size and raw material characteristics to change
Raw material HDPE LDPE LLDPE CACO3 RECYCLING
Diameter of screw Φ45/50/45
L/D ratio of screw 32:1 (With force feeding)
Gear box 146# 173# 146#
Main motor 18.5kw/22kw/18.5kw
Die diameter 100mm/250mm/300mm
