Q-Two diehead film blowing machine

This double head film blowing machine set is used for blowing HDPE LDPE plastic film to make various and flat bags which have been widely used for packing in the food industry,garment industry and textile industry,etc.

Information Download
Inquire Now
Product Presentation
Description

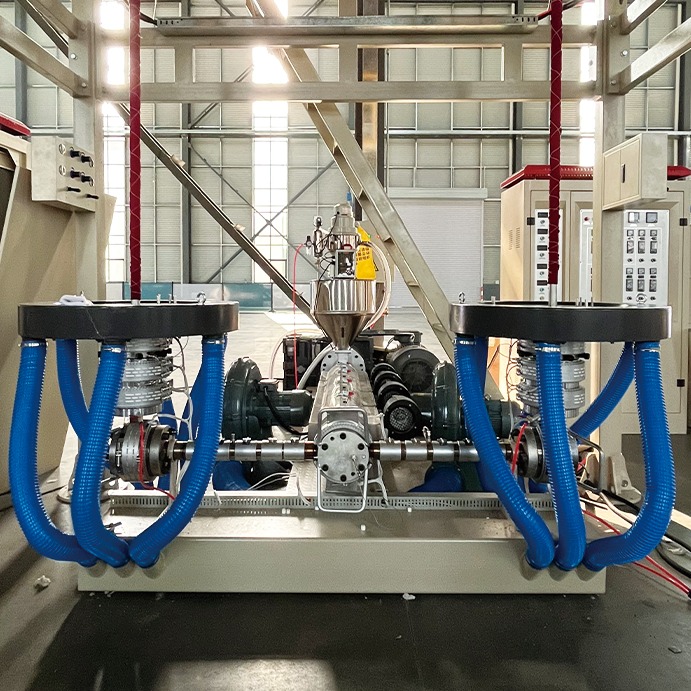

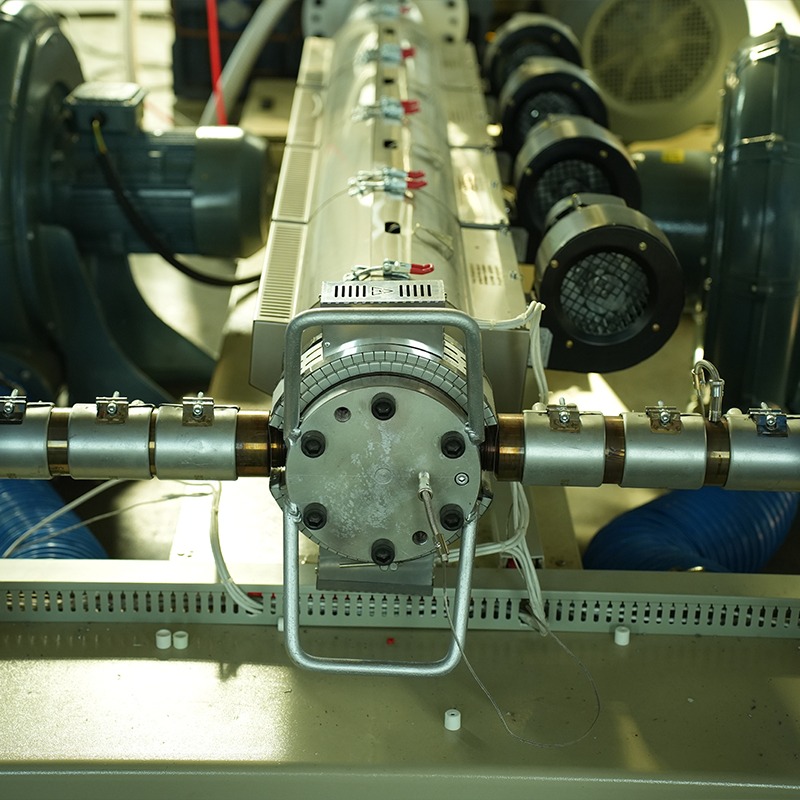

Double die head film blowing machine is a drag two film blowing machine,refers to a screw cylinder with 2 die heads and 2 upper traction and 2 winder,suitable for blowing small width of LDPE HDPE plastic film.Such as T-shirt bag,rolling bag,shopping bag and so on.Both the cylinder and the screw of the extruding are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.


Specification

*Swipe left and right to view the full parameters


Model 50-500 55-600/700 65-700
Width of the film 150-300mm 200-400mm 300-550mm
Thickness of the film HDPE:0.008-0.08mm  LDPE:0.02-0.12mm
output 25-90kg/h 30-100kg/h 40-120kg/h
output According to different width, thickness of film,die size and raw material characteristics to change
Raw material HDPE/MDPE/LDPE/LLDPE/CACO3/RECYCLING
Diameter of screw Φ50 Φ55 Φ65
L/D ratio of screw 32:1(With force feeding)
Gear box 173# 180# 200#
Main motor 18.5kw 22kw 37kw
Die diameter φ50mm   φ60mm φ80mm
