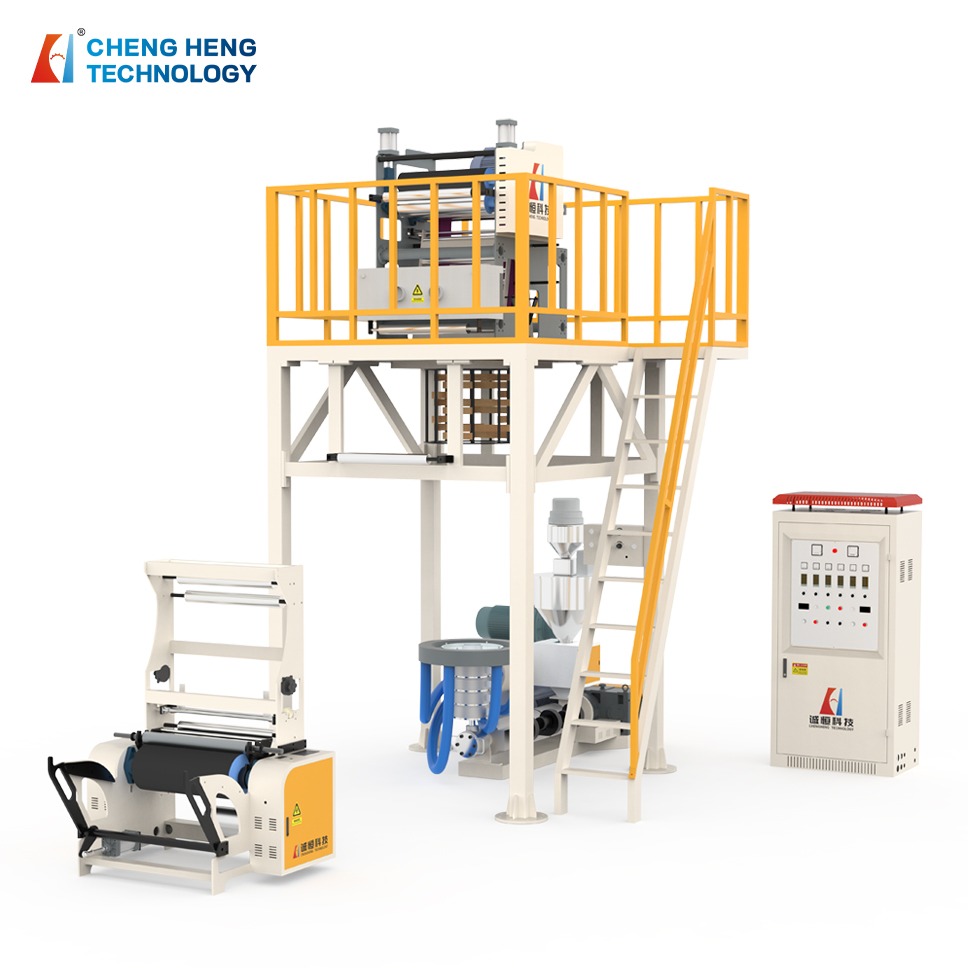

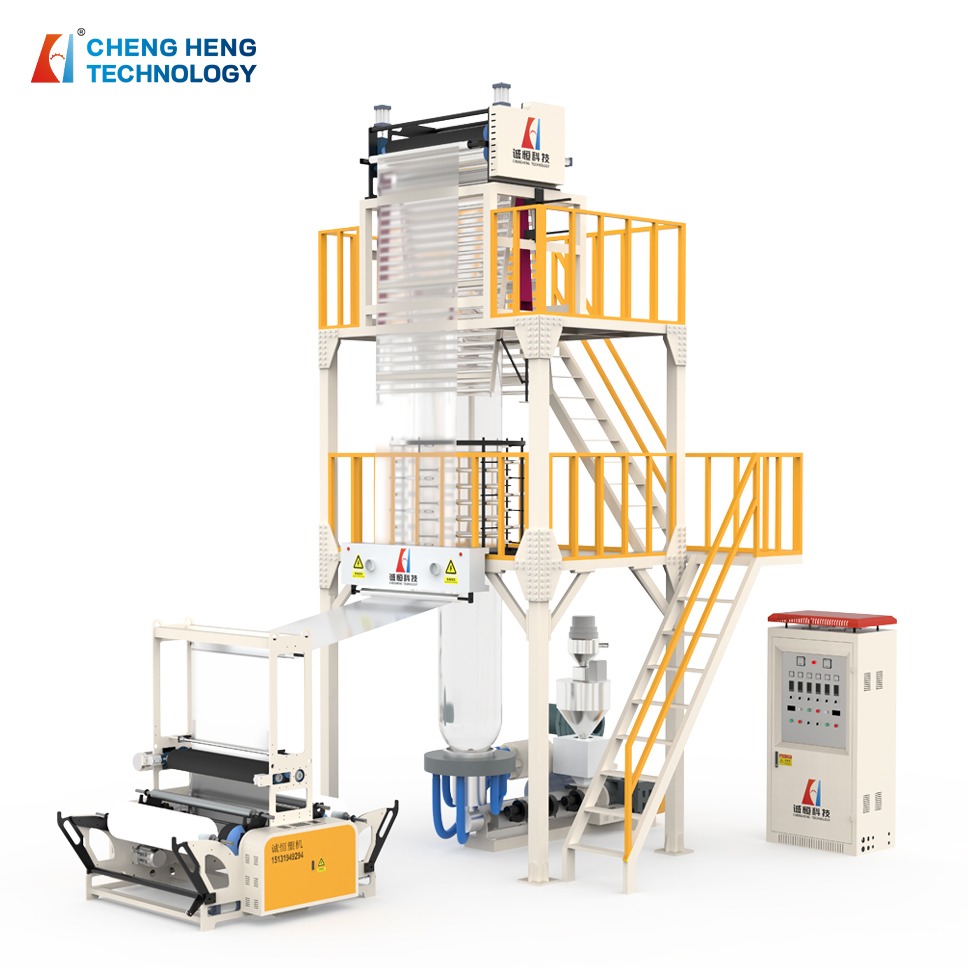

J-Mono-layer vertical rotary film blowing machine

High speed mono-layer vertical rotary film blowing machine is an innovative and efficient solution for producing high-quality blown films.The vertical rotary film blowing machine could make 200-1000mm plastic film.And this machine height similar with normal film blowing machine.

Product Presentation
Description

High speed mono-layer veHigh speed mono-layer vertical rotary film blowing machine is designed with main machine force feeding and vertical rotary traction,providing more even film thickness and more neat winding.The most important this machine conquer the oil and granules leakage problems of rotary die head.It offers superior film quality,ideal for producing shopping bags film (HDPE /LDPE all adopt,and also could produce T-shirt bags film).One of the key features of the machine is its vertical traction system,which offers a more stable and reliable film blowing process.Vertical rotary traction device offers more flexibility in film thickness quality,allowing customization to specific production requirements.This machine also equipped an advanced automatic discharge roll function.It could achieve automatic discharge the film roll,and save the labor in a certain.High speed mono-layer vertical rotary film blowing machine is energy-efficient,reducing operating costs and providing a cost-effective solution for your production needs.


Specification

*Swipe left and right to view the full parameters


Model 45-700/ 900 50-900 55-1200
Width of the film 200-500/200-700mm 200-700mm 500-1000mm
Thickness of the film HDPE:0.008-0.08mm  LDPE:0.02-0.15mm
Output 25-85kg/h 30-100kg/h 35-120kg/h
Output According to different width, thickness of film,die size and raw material characteristics to change
Raw material HDPE LDPE
Diameter of screw Φ45 Φ50 Φ55
L/D ratio of screw 32:1 (With force feeding)
Gear box 146# 173# 180#
Main motor 15kw 18.5kw 22kw
Die diameter Φ60/150mm Φ60/150mm Φ100/250mm
