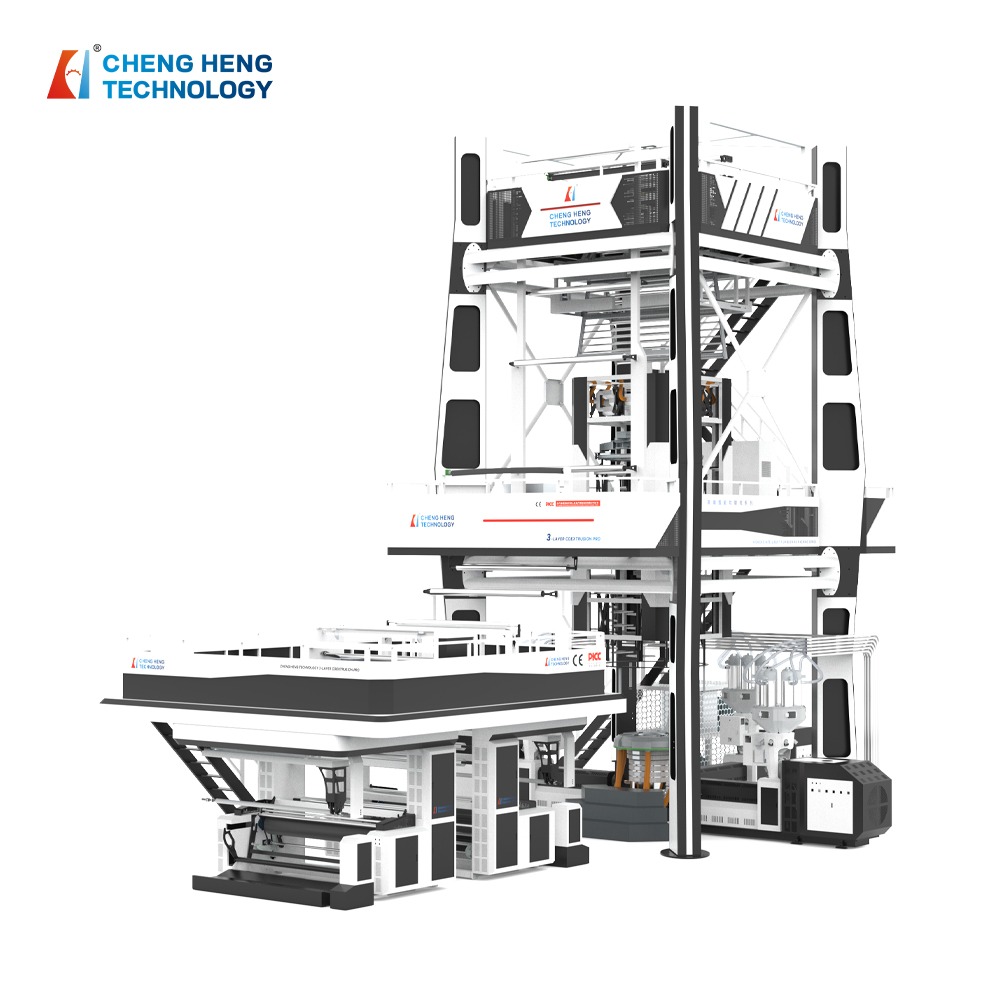

B-ABC (IBC)Three layers co-extrusion film blowing machine

This film blowing machine is specially designed to offer excellent productivity,with output capacity ranging from 150 to 380 kg/hour.It features a high-performance screw and barrel that ensures smooth and efficient production for optimal results.

Information Download
Inquire Now
Product Presentation
Description

ABC(IBC) three layers co-extrusion film blowing machine is a versatile and high-performance device ideal for the packaging industry.With its advanced technology and efficient operation,this machine offers superior quality and excellent results for all your packaging needs.

ABC film blowing machine is an innovative and reliable product that offers advanced technology, excellent productivity, and a wide range of customization options that can meet the needs of various packaging applications.This machine is equipped with state-of-the-art features such as automatic temperature control, automatic thickness control, and automatic winding that make it easy to operate.One of the key advantages of the ABC(IBC) film blowing machine is its versatility. It can produce a variety of packaging materials, including LDPE, LLDPE, and HDPE films. The another noteworthy feature is this ABC machine's ease of installation and maintenance.Its modular structure ensures easy assembly and disassembly while providing easy access to essential components for cleaning and servicing.

Specification

*Swipe left and right to view the full parameters


Model 3L-45-50-45/1200 3L-50-55-50/1400 3L-55-65-55/1600/1800 3L-65-75-65/2200
Width of the film 600-1000mm 600-1200 800-1400/1000-1600 1400-2000
Thickness of the film LDPE 0.02-0.2mm
Output 160kg/h 250kg/h 300kg/h 380kg/h
Output According to different width, thickness of film,die size and raw material characteristics to change
Raw material HDPE/LDPE/LLDPE/MDPE/EVA
Diameter of screw Φ45/50/45 Φ50/55/50 Φ55/65/55 Φ65/75/65
L/D ratio of screw 32:1(With force feeding)
Gear box 146# 173# 146# 173# 200# 173# 200# 225# 200# 225# 250# 225#
Main motor 15kw/18.5kw/15kw 18.5kw/30kw/18.5kw 37kw/45kw/37kw 45kw/55kw/45kw
Die diameter Φ250mm Φ300mm Φ350mm/400mm Φ500mm
